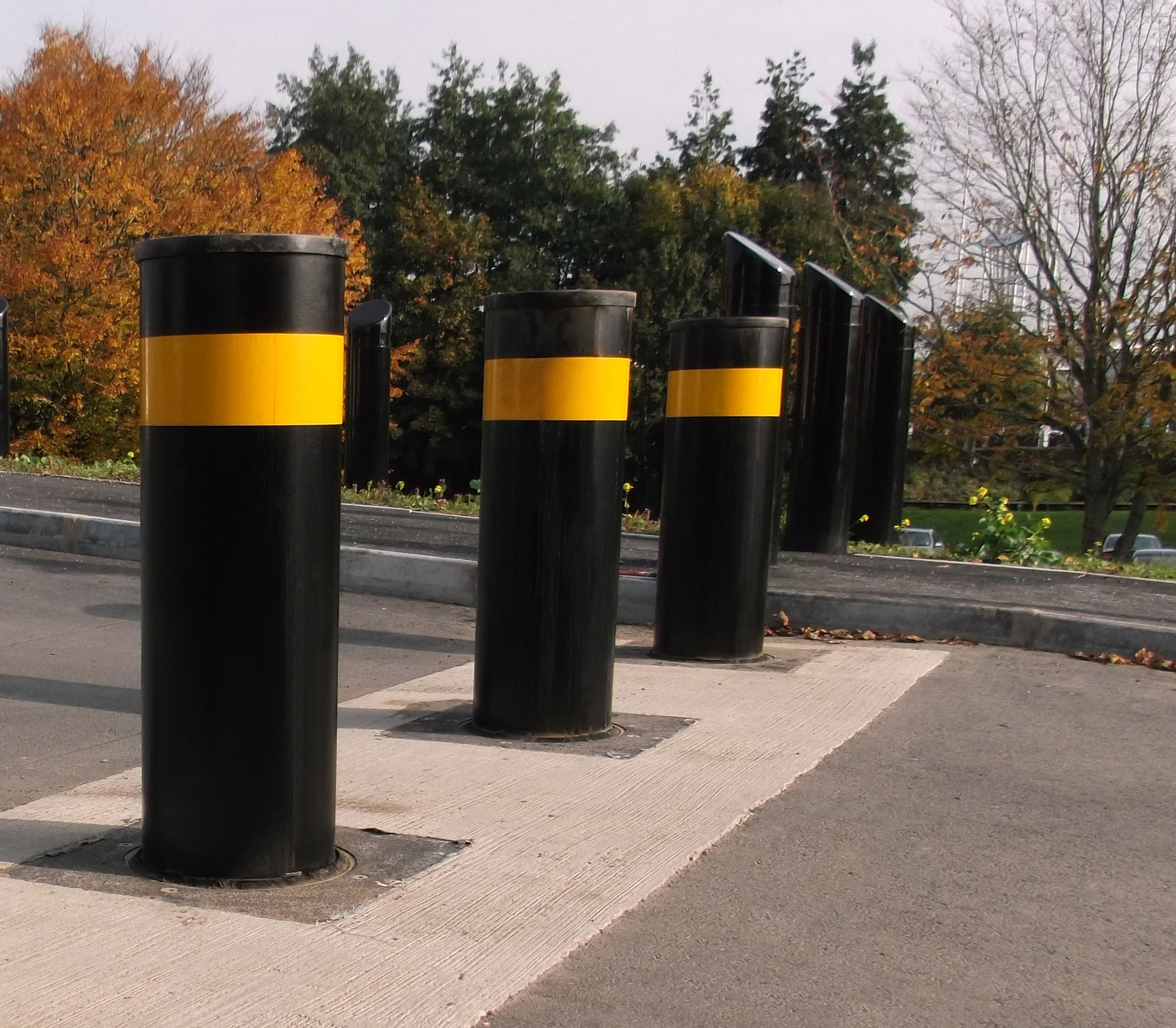

PAS 68 Auto Bollards - SB970CR Scimitar Bollard
The Avon SB970CR Scimitar Security Bollard provides a high level of security against unauthorised vehicle access without the need for an outwardly aggressive appearance.
The PAS 68 impact rated bollard is an active automated bollard that is hydraulically operated, it stands 1000mm in its fully raised position and retracts to road level to allow authorised vehicles access.
It can be integrated with our other PAS 68 static bollards to create a cohesive protective perimeter around an area or building.
The active bollards are developed as a Hostile Vehicle Mitigation (HVM) product and are designed to withstand direct impact forces in excess of 1,800 KJ, the bollard provides protection from extreme Vehicle Borne Improvised Explosive Device (VBIED) attack to sites where aesthetics and public perception are a consideration.
Key features & benefits
- Physically impact rated to PAS68 criteria
- Multiple testing (single bollard / multiple bollards)
- Unobtrusive appearance
- Minimal foundation requirement (2.25 cubic metres)
- Manufactured from heavy gauge materials
- Manual hand pump facility
- Programmable logic control system
- 100% duty cycling
- Confidence in proven performance
- Comprehensive attack resistance and confidence in individual bollard performance
- Aesthetically acceptable
- Ease of installation
- Strength and durability
- Operational under power failure conditions
- Flexibility to interface with all forms of access control Reliable
Technical Specification
| Physical Dimensions: |
HPU Cabinet:
640/940mm W x 670mm D x 1300mm H
Single Bollard:
610mm W x 610mm D x 2000mm H
|
|---|---|
| Basic Power Requirements: | 3-Phase 415v AC, 50Hz, 20 Amps (other voltages are available) |
| Control Voltage: | S.E.L.V 24v |
| Performance: | Loading 30 Tonnes |
| Impact Absorption: | Single SB970CR 1852KJ (fully operational immediately after impact) |
| Full PAS68 Security Rating: | PAS 68:2005 V/7500(N2)/80/90:0/25 |
| Speed of Operation: | 6 Seconds to raise or lower |
| Tested Model: | 990mm Hx 322mm Dia |
| Operating temperature range available: | -25°C – +70°C |
| Construction: | The unit is comprised of a static sub-surface mounting tube and impact tube. The supporting framework is constructed from fully welded, high strength, structural steel completely encased with steel sheets to provide a self-shuttered module. The 323.9mm (+/- 1%) diameter bollard is constructed using hi-tensile structural steel. |
Options available
- Traffic lights and back-indication systems
- Emergency buttons with lock down
- Inductive loop systems
- Access and intercom systems
- Interlocking systems to give air-lock type protection on sites for higher threat levels
- Decorative sleeves (fibre glass / stainless steel)
- UPS backup for the electrical system
- LPS 1175 cabinets available for HPU
