Avon EB500 Parking Barrier
The Avon EB500 Parking Barrier is a rising arm barrier that can be utilised as an automatic traffic control for car parks and security access.
The EB500 is 100% duty cycling, allows compliance with relevant safety standards and is designed for continual high use. It is manufactured to the highest standards; the slim smooth acting barrier is constructed from aluminium and has a rust free environmentally durable IP54 rated cabinet.
The barrier cabinet is slate grey (RAL 7015) powder coated with a traffic yellow lid (RAL 1023), other colour options are available.
Key features & benefits
- 100% duty cycling
- Energy saving 24v brushless motor gearbox – planetary gear
- Aluminium rust free cabinet
- End position detection without limit switches
- Variable speeds*
- Six programmable relay outputs
- Three single loop detectors
- Opening angle adjustable in 5° steps starting with 55°
- Reliability for high usage
- Environmentally durable cabinet
- Manufactured from sustainable recyclable materials
- Emergency manual lever
- Easy to maintain & upgrade
- Adaptable to site conditions
Technical Specification
| Physical dimensions: | Barrier Cabinet – 360mm W x 300mm D x 1100mm | ||||
|---|---|---|---|---|---|
| Supply voltage: | 88v-264v 47Hz-63Hz | ||||
| Boom length (mm): | 2500 | 3000 | 3500 | 4000 | 5000 |
| Effective boom length (mm): | 2280 | 2780 | 3280 | 3780 | 4780 |
| Power consumption max (W): | 180/55/45 | 85/80/70 | 80/60/65 | 75/85/70 | 195/165/175 |
| Opening and closing times (speeds)* – available, approx. [s] | 1.8/1.3/.9 | 1.3/1.8/2.5 | 1.8/2.5/3.8 | 2.8/3.8/4.5 | 3.8/4.5/5.5 |
| Barrier weight approx kg (boom weight approx kg) | 57 (5) | 58 (6) | 58 (7) | 59 (8) | 60 (10) |

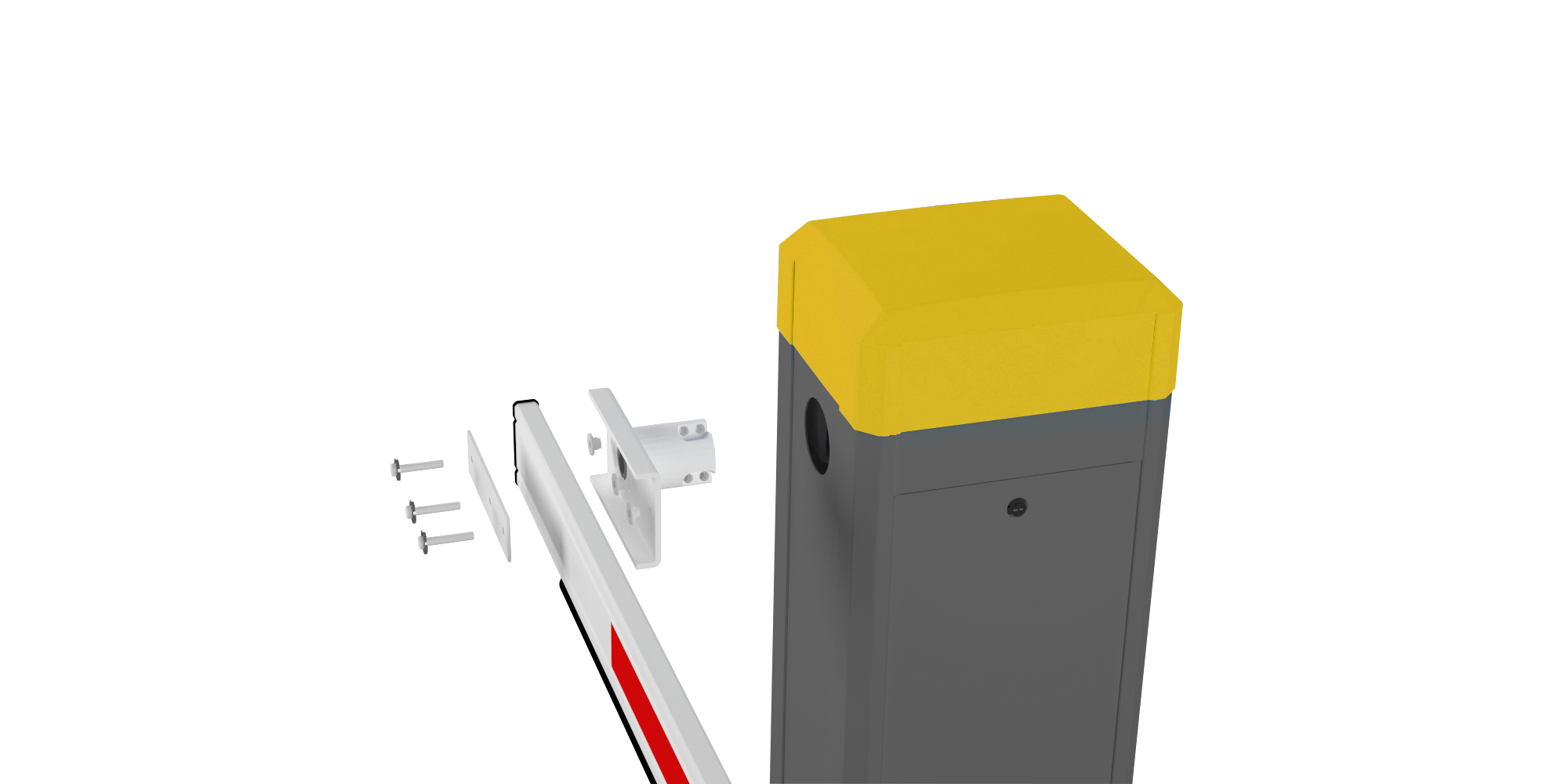

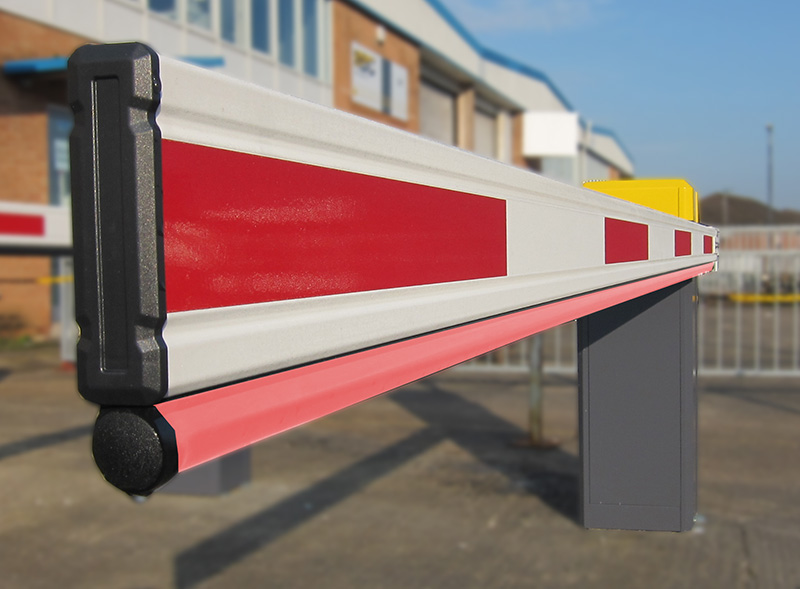

| Boom Construction: | Boom profile is a rectangular extruded aluminium boom lengths 2500 – 4000mm – 100 x 25 mm and 5000m -100 x 50 mm, powder coated (RAL 9010) with red reflective signal stripes. Max length 5000mm Booms can be mounted on the left or right hand as required. 5000mm booms require an end support | ||||

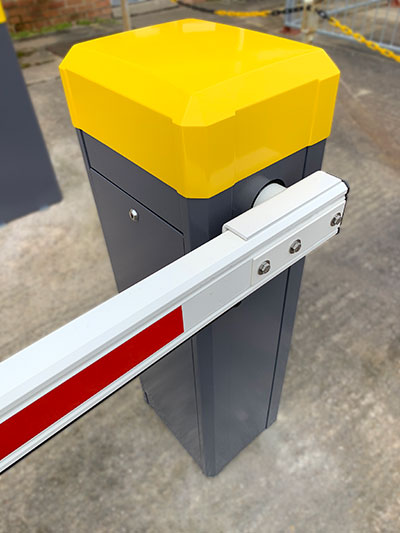

| Barrier Construction: | The aluminium cabinet is powder coated – main cabinet RAL 7015 (slate grey), cabinet lid RAL 1023 (traffic yellow) (other options available) with an IP54 rating. | ||||
| Installation: | The barrier foundation if installing outside should consist of grade C35/45 concrete and it is recommended that the barrier is secured to the foundation using 4 M12 x 160mm chemical anchors. The installation of ducts for cabling is dependent upon the control criteria. | ||||
Options available
- Access control & intercom systems
- Inductive Loops
- LED boom lighting
- Module for auto open in event of power failure
- Additional safety features
- Module for radio remote control receiver
- Alternative cabinet colours available
- Module TCP/IP or RS485 for network operation
