Avon RB880CR Defender Road Blocker
PAS 68 Shallow Road Blocker

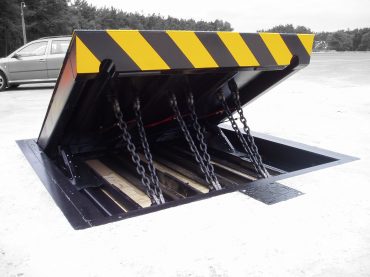

The Avon RB880CR Defender Road Blocker is a PAS68 Shallow Road Blocker and is ideal
where deeper foundations are not possible / practical.
With a foundation depth of less than 300mm, the RB880CR is designed to complement the
Avon Barrier range of HVM (Hostile Vehicle Mitigation) solutions. The road blocker has a
blocking segment with a raised height of 1000mm and can withstand direct impact forces
of 1,852 KJ.
The road blocker was developed by our in-house engineering team to overcome specific
site limitations and is available with segment widths of 2m and 3m.
Key features & benefits
- Multiple testing (4 different independent tests)
- Road blockers shallow foundation /mounting from 300mm overall depth 100% duty cycling
- Programmable logic control system
- Manual hand pump facility
- Manufactured from heavy gauge materials

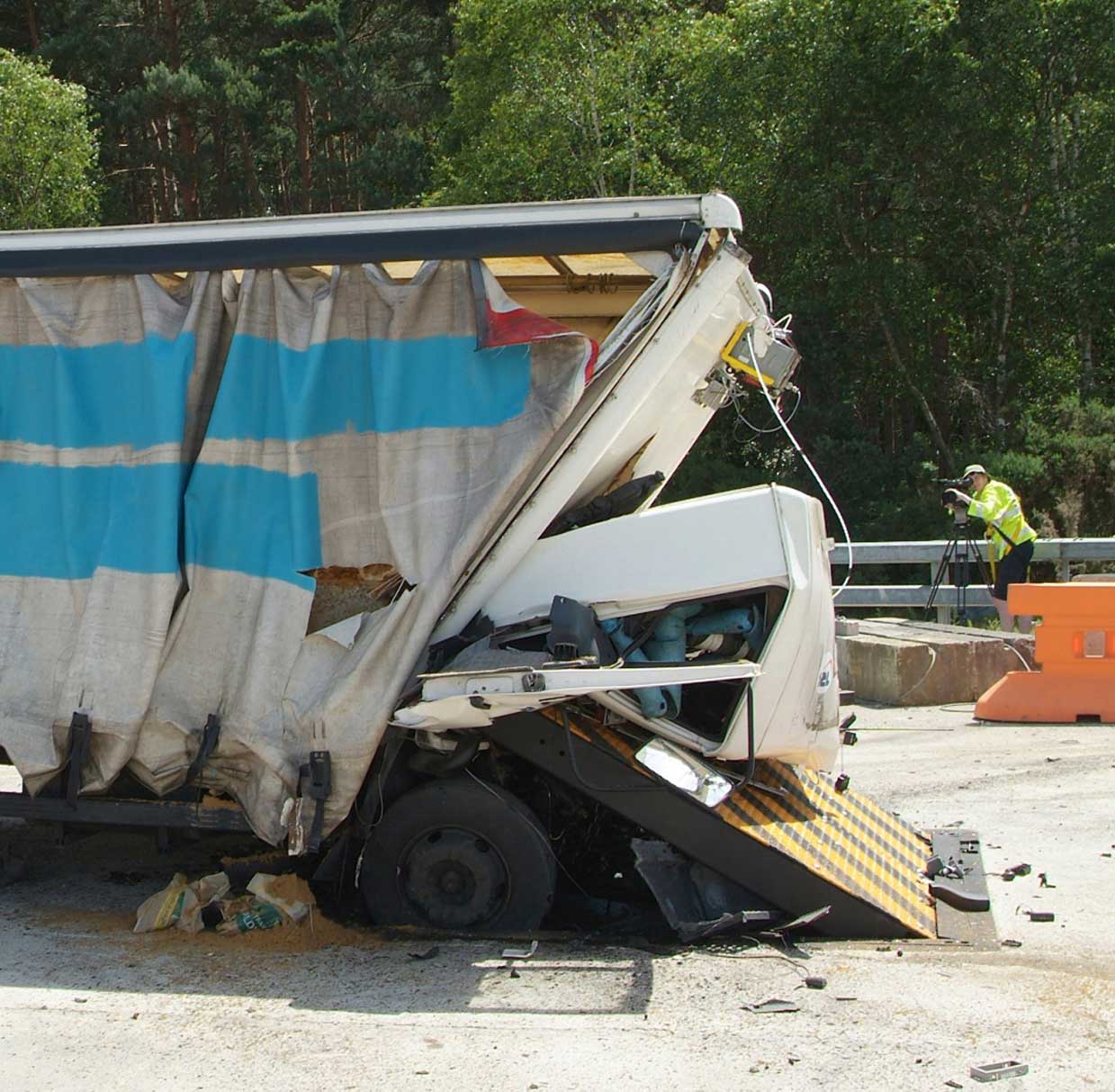

- Physically impact tested to PAS 68 criteria
- Comprehensive understanding of attack resistance
- Overcomes site depth restrictions
- Reliable and dependable
- Flexibility to interface with all forms of access control
- Operational under power failure conditions
- Strength and durability
Technical Specification
Physical Dimensions: |
|
|---|---|
| 3m Road Blocker: 2m Road Blocker: | 2520mm W x 3210mm D x 320mm H 2520mm W x 2210mm D x 320mm H |
| HPU Cabinet: | 935mm W x 660mm D x 1295mm H |
| Raised height of blocking segment: | 1000mm |
| Blocker widths available: | 2 & 3 metres widths |
| Basic Power requirements: | 3-Phase 415v AC, 50Hz, (other voltages are available) |
| Control Voltage: | S.E.L.V 24V |
| Performance: | Loading 20 Tonnes |
| Impact absorption: | 1852Kj |
| PAS 68 Classification: | V/7500(N2)/80/90:0/0 |
| Tested Model: | 2m blocking segment 1000 mm high blocking segment (raised) |
| Speed of operation: | 6 Seconds to raise or lower (alternative speeds available) |
| Emergency Fast Operation (EFO) (option): | 1 seconds to raise |
| Operating temperature range available (option): | -25°C – +70°C |
| Construction: | The supporting framework is constructed from fully welded, heavy gauge, high strength structural steels. Foundation support legs are provided to create a linked foundation enabling the impact forces to be distributed over a larger shallow area. |
Options available

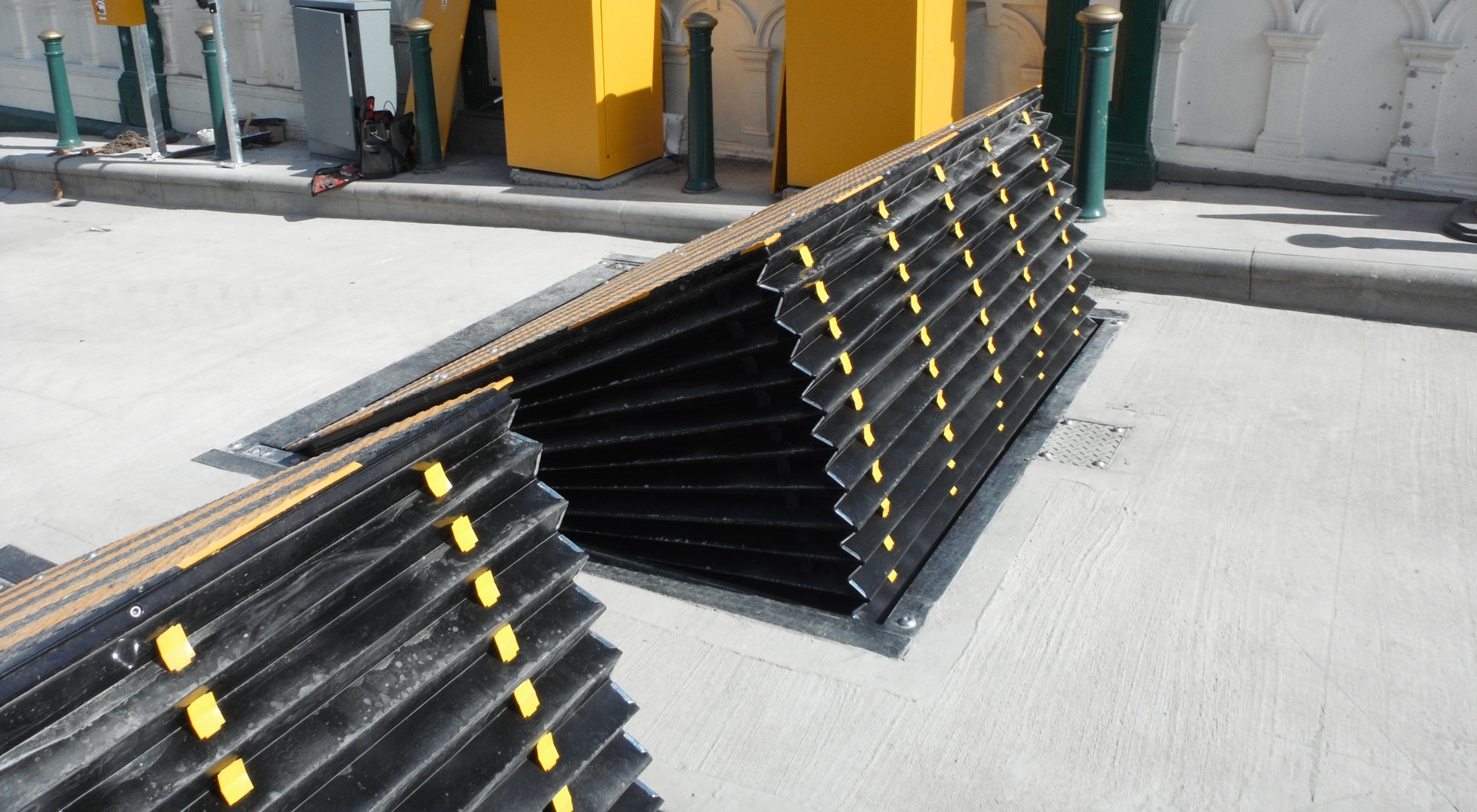

- Debris protection skirt
- Emergency fast raise system
- Emergency buttons with lock down UPS backup for the electrical system
- Accumulator systems for hydraulic operation in power failure conditions
- Access and intercom systems
- Inductive loop systems
- Traffic lights and back-indications systems
- Interlocking systems to give air-lock type protection on sites with higher threat levels
- Integral inset warning lights in blocking segment
