Turnstile

... ... ... ... ...
...
...
...
...
...

TurnSec 4.0 Turnstiles

Avon TurnSec Turnstiles are designed for securing pedestrian entrance ways; regulating the flow of authorised pedestrians and denying unauthorised access.
Full height turnstiles are an efficient and effective way of controlling the entering and exiting of pedestrians and with integrated access control, visitors can be monitored and managed.

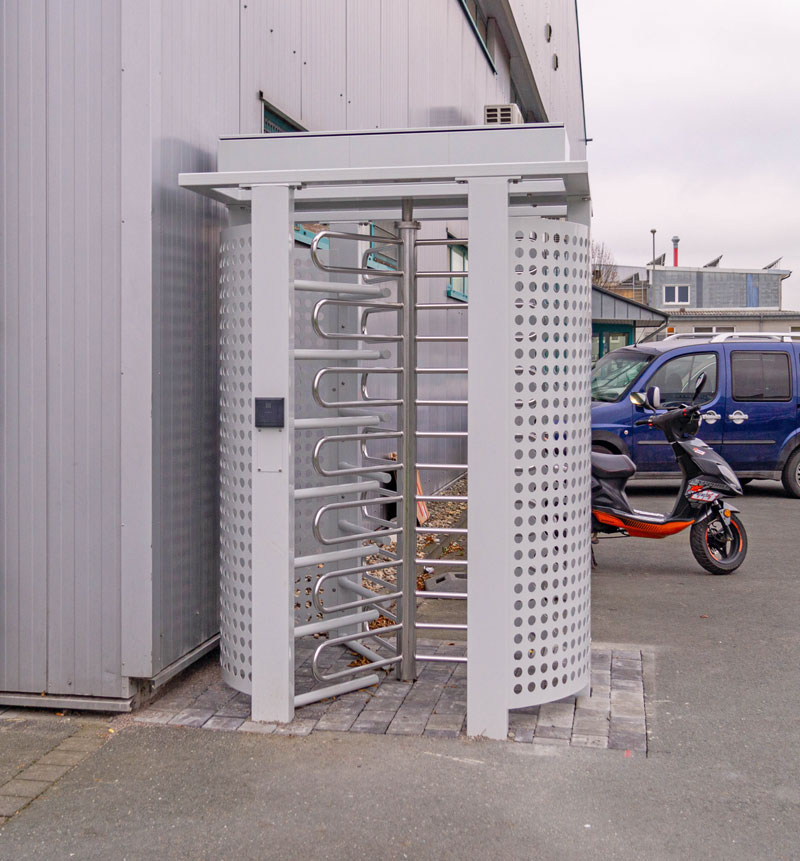

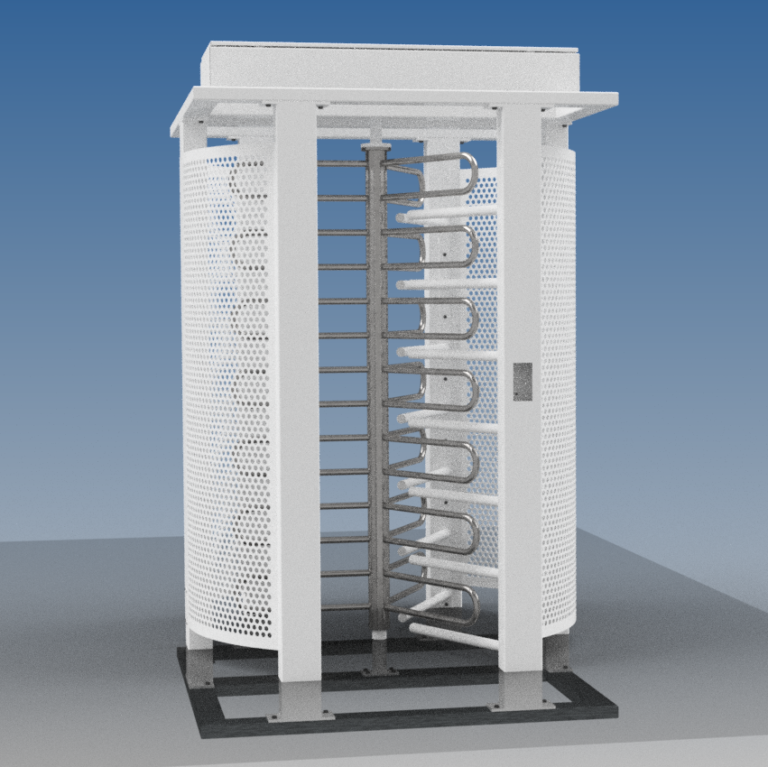

The Avon TurnSec 4.0 is available as a single and multiple system.

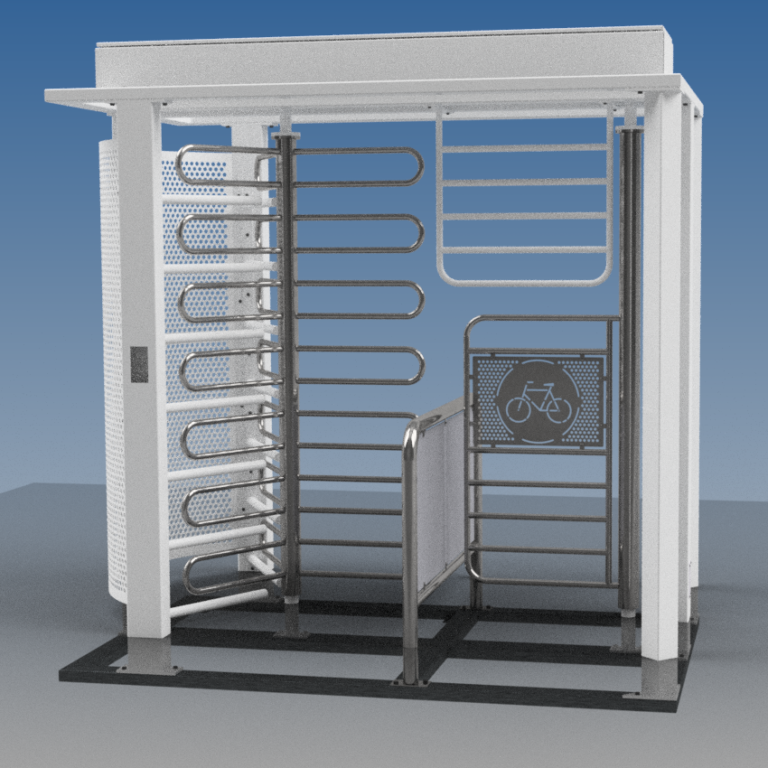

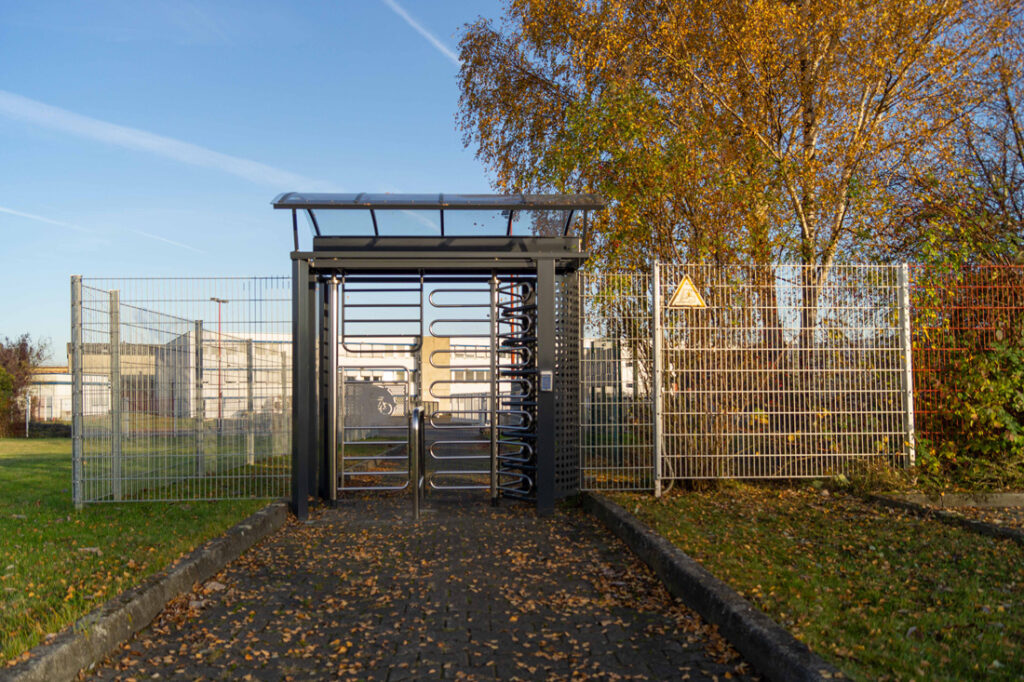

The TurnSec Bicycle 4.0 provides pedestrians with bicycles unhindered access to your premises.

Get a Quote

Key features & benefits

Features
  • High quality coating system
  • Robust construction
  • Modular construction
Benefits
  • Low maintenance
  • Secure
  • Easy to install

Technical Specification

TurnSec 4.0 / Bicycle
Model: Single or Mulitple Turnstile Systems, Turnstile system with bicycle gate
Frame: Robust steel contstruction
Rotor: 3 arm – 120°
Drive Unit: Electric motor assisted.
Control Unit: Multifunctional, automatic control WE-Tronic II
Construction:
  • Hot-dip galvanised bottom frame for installation with 200 mm lowered foundation, thus allowing a visually perfect integration into the design of the walkway area – optional without foundation lowering for installation on finished floor level
  • Rotor made of stainless steel, with welded hairpin-shaped tubular brackets at 120° intervals (3-armed); base frame hot-dip galvanised; guide and deflector elements, upper frame and drive tray powder-coated with long-term corrosion protection
  • Side elements with perforated sheet filling, perforation RV 20-28 or upper and lower rail made of flat steel, filling rods made of round tube; optional personal guide housing made of steel with aluminium door

Options available

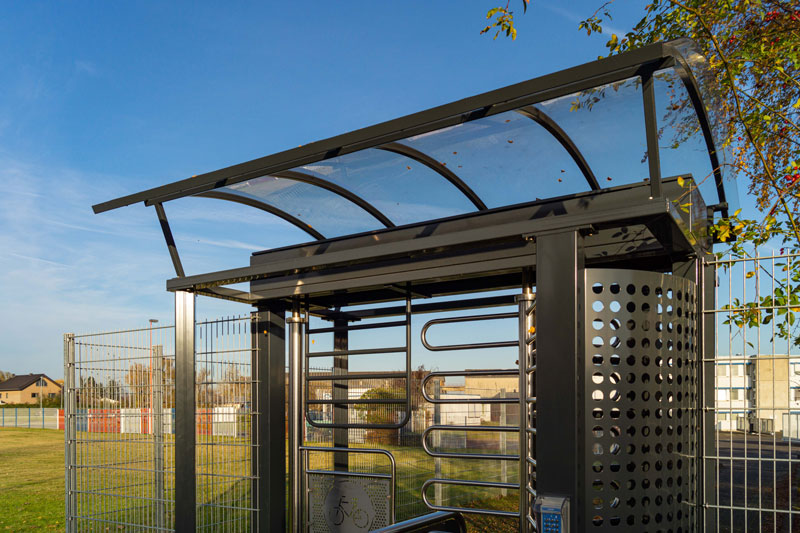

  • Curved modern Makrolon roof canopy
  • LED illumination – with/without twilight switch
  • Installation on FFL / without lowered foundation
  • Table top push buttons with selection of operations
  • Side elements with top and bottom rail made of flat material, vertical bar infill made of round hollow section
  • Key switch single release / Key switch free access
  • Coded key pad
  • Proximity card reader
  • Traffic light red/green
  • Traffic light pictogram – green arrow/red cross
  • Intercom systems
